Lab Disc
Choose Your Favorite Color Scheme:
- White

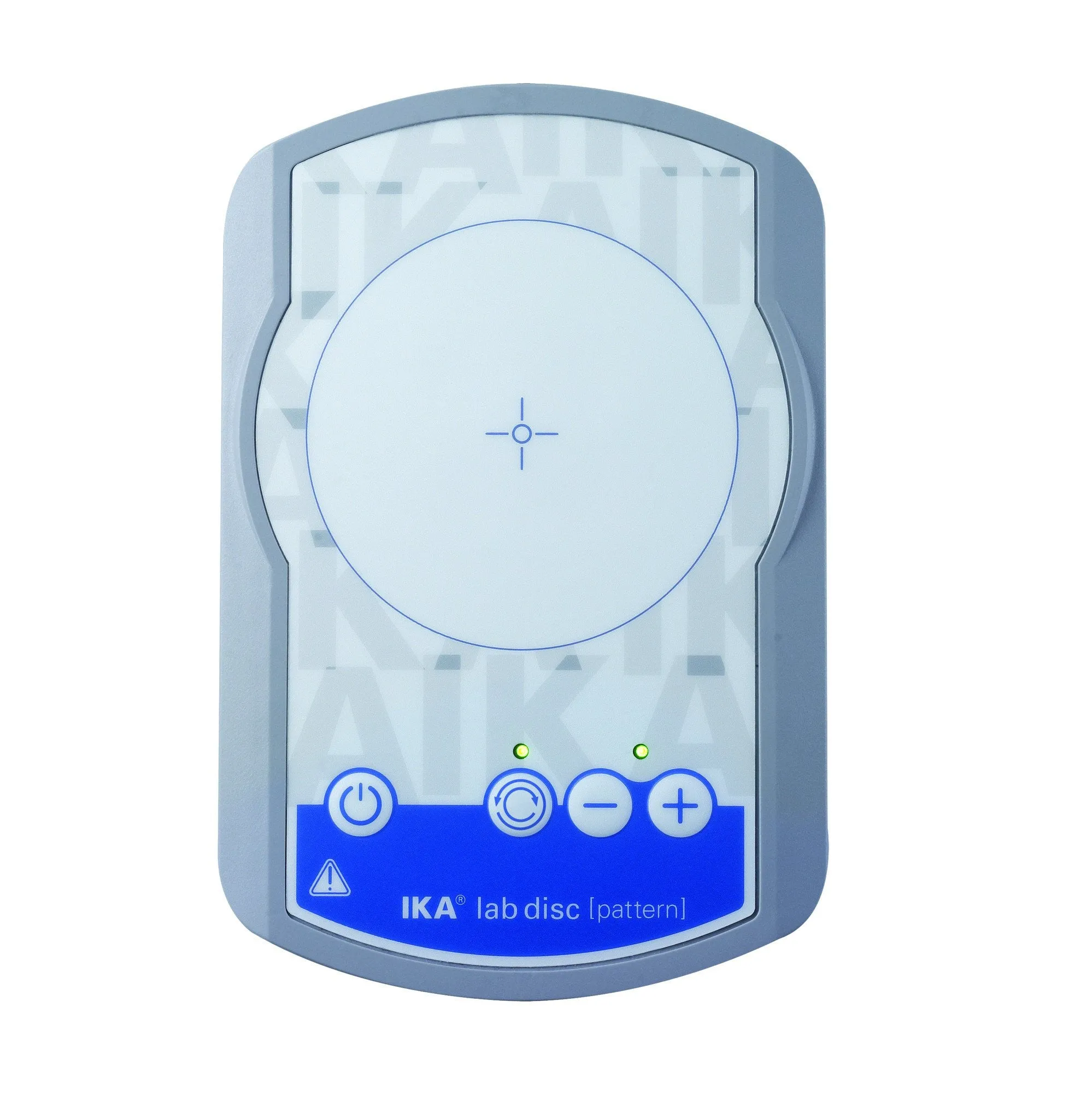

- Pattern

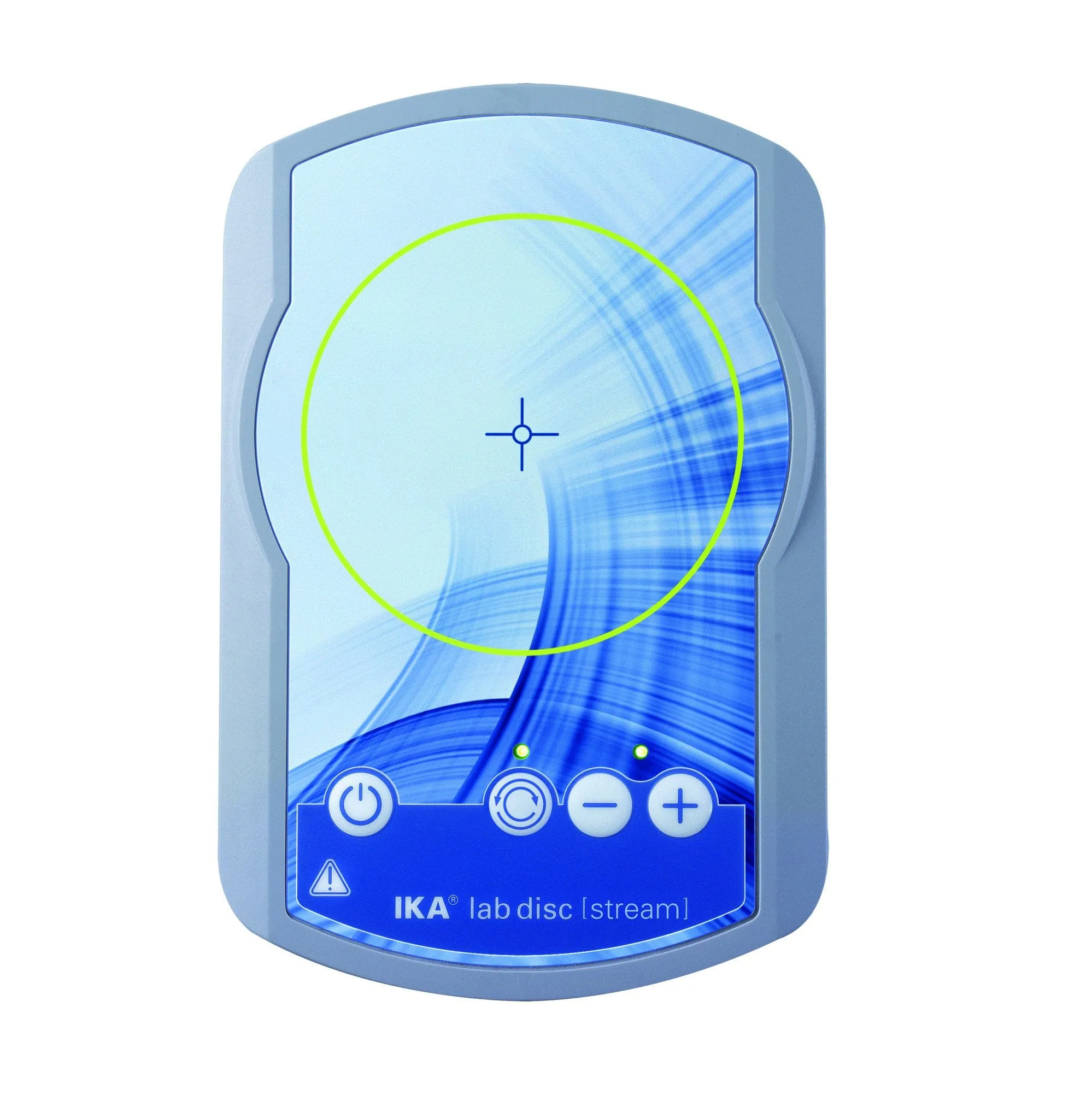

- Stream

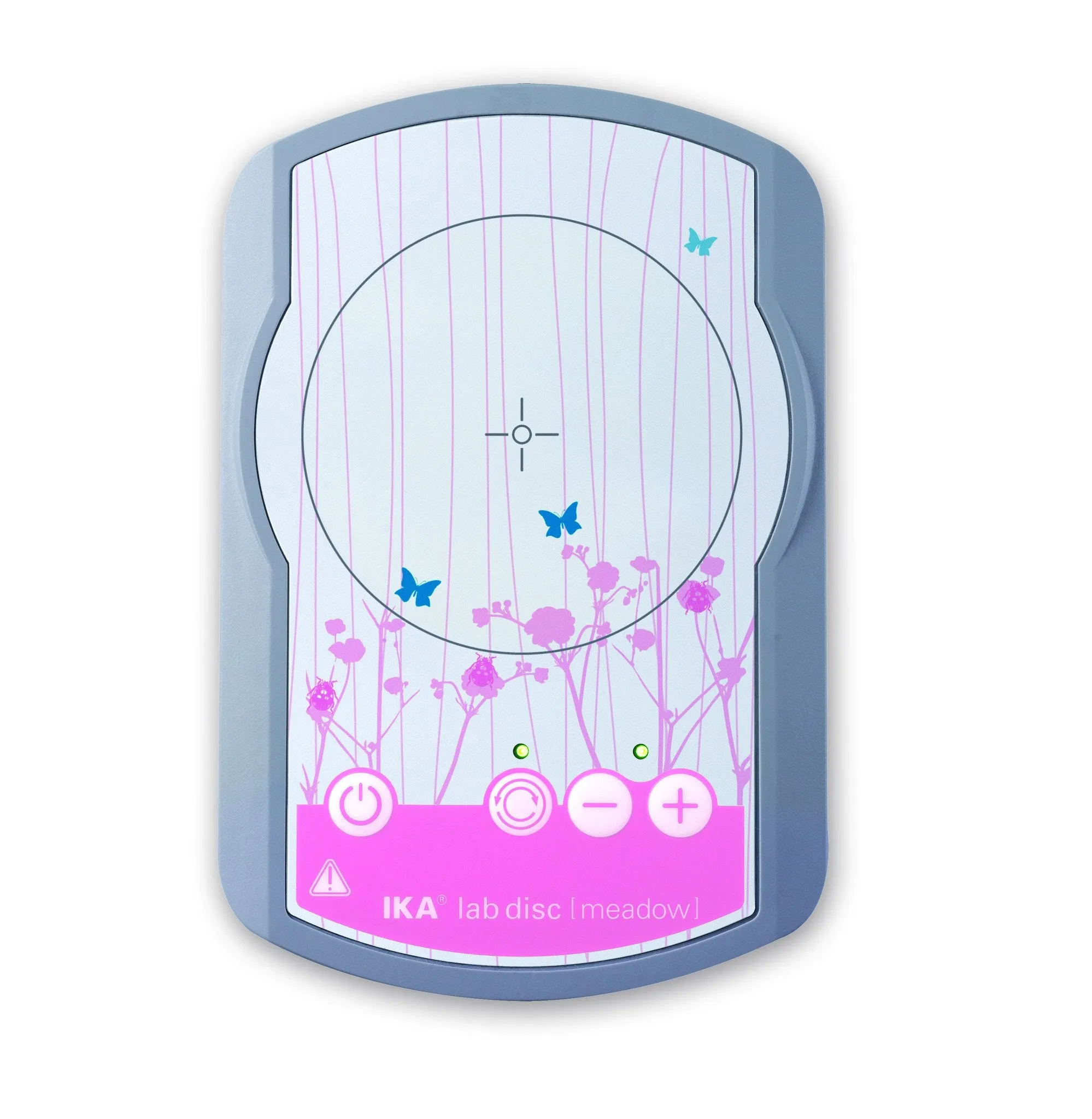

- Meadow

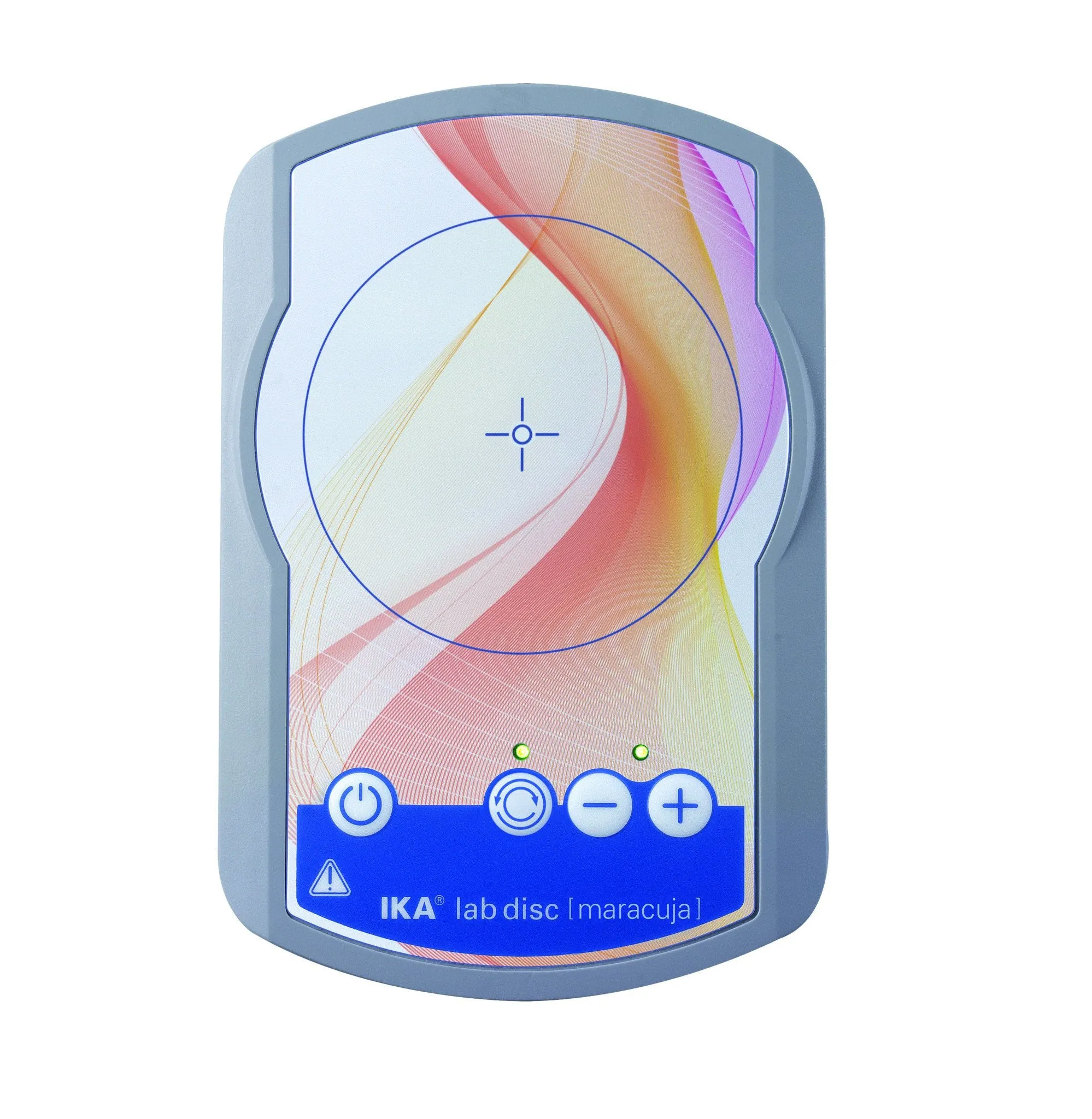

- Maracuja

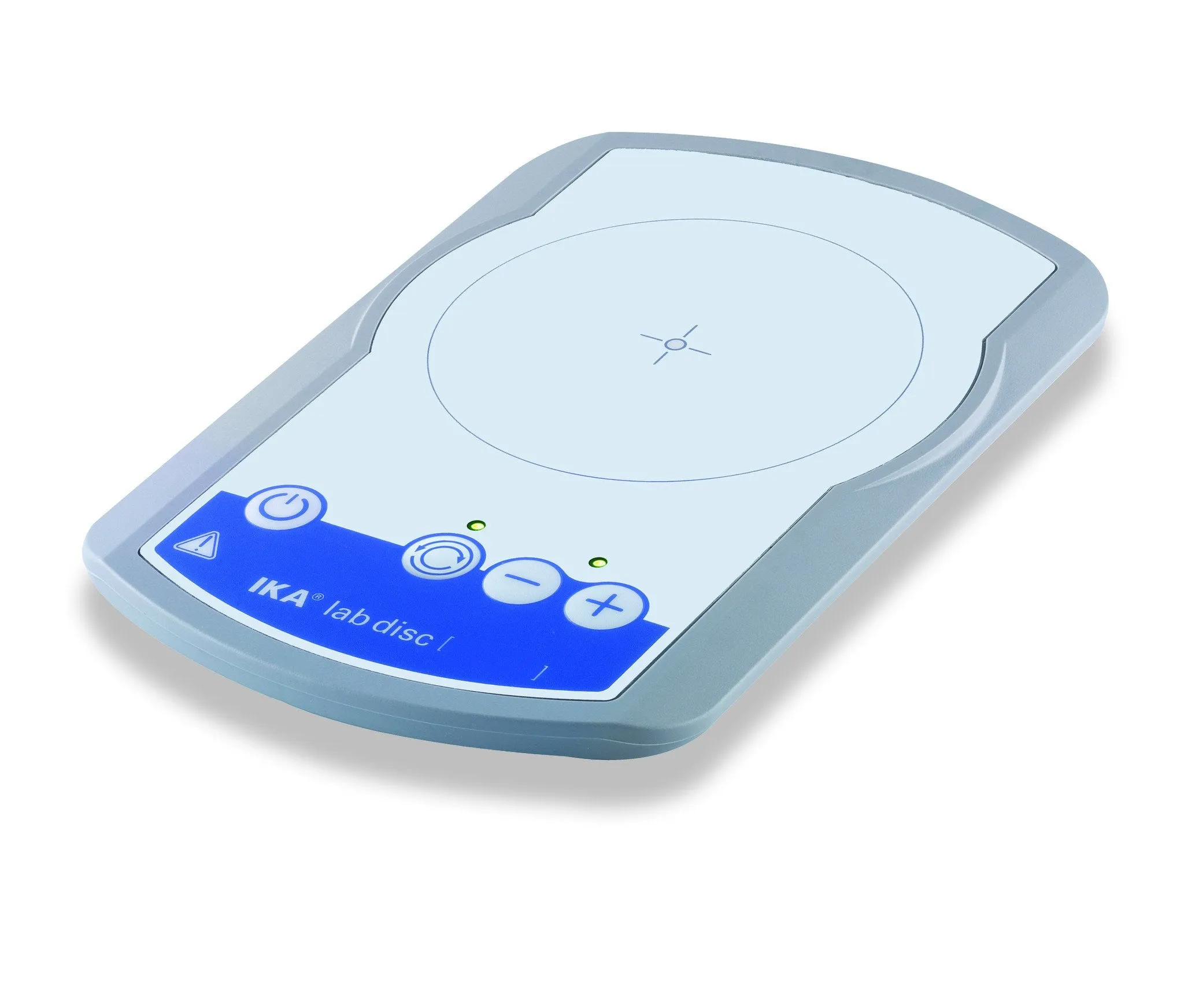

Ultra-flat compact magnetic stirrer, guaranteed with modern magnet coil technology. Wear-free drive with no moving parts. To ensure better mixing, the lab disc can reverse direction of rotation automatically every 30 seconds.
- High IP protection class (IP 65)
- Set-up plate and casing made from chemically resistant materials
- Slip-proof, safe stand
Product Overview Owner's Manual
Specifications
Number of stirring positions | 1 |
Stirring quantity max. per stirring position (H2O) | 0.8 l |
Motor rating input | 5 W |
Motor rating output | 3 W |
Speed range | 15 - 1500 rpm |
Stirring bar length max. | 25 mm |
Set-up plate material | polyester |
Set-up plate dimensions | Ø 100 mm |
Dimensions (W x H x D) | 117 x 12 x 180 mm |
Weight | 0.3 kg |
Permissible ambient temperature | 5 - 40 °C |
Permissible relative humidity | 80 % |
Protection class according to DIN EN 60529 | IP 65 |
Voltage | 100 - 240 V |
Frequency | 50/60 Hz |
Power input | 5 W |
